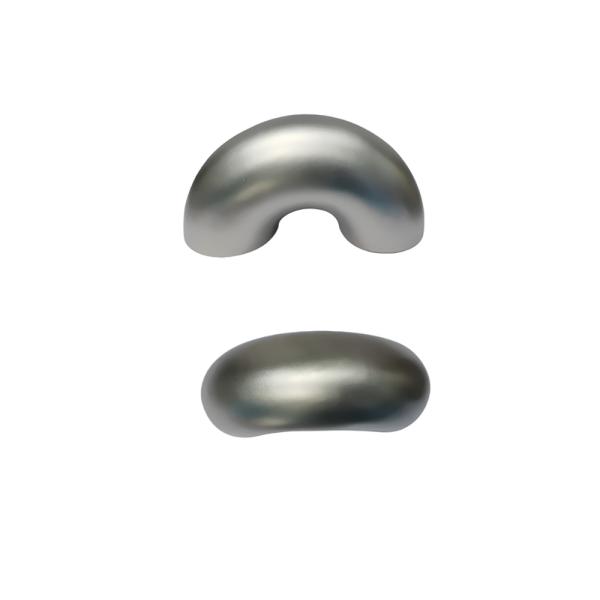

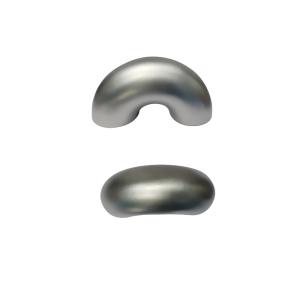

Titanium 180 degree elbow is commonly used connecting pipe fittings in pipeline systems and indispensable components.
They can change the flow direction and direction of fluids. It has characteristics such as corrosion resistance and
high-temperature resistance.
Long radius titanium elbow pipe fittings specifications cover DN15-DN600, and also support non-standard customization
accordingly to customer’s requirements or drawings. Our titanium 180 ° elbow pipe fittings are manufactured critically to
the exact standard, including ASME B16.9,GB/T27684-2011 international standards to meet different requirements
from the customers worldwide.
Titanium long radius 180 degree elbows are widely used in high-demand fields such as chemical engineering, petroleum,
and power. In chemical equipment, its corrosion resistance can resist the erosion of acid and alkali media, ensuring the
long-term stable operation of pipelines. On offshore platforms, its resistance to seawater corrosion extends the service
life of equipment.
| Standard | ASME B16.9,GB/T27684-2011 |
| Material Designation | TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
| Size | DN15-DN600 |
| OEM/ODM | Available |
| Surface Finish | Shot blasting, Sand blasting |
| Technics | Welding, Seamless |
| Type | Titanium 180° Elbow |
| Packaging | Export Standard Wooden case, or can be customized |
| Application | Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for offshore oil drilling, etc |
mm
| Nominal Diameter
DN | Outside diameter at bevel
d | center to center
0 | Back to end |
| Major radius | Short radius |
| ⅠSeries | ⅡSeries | Major radius | Short radius | ⅠSeries | ⅡSeries | ⅠSeries | ⅡSeries |
| 15 | 21.3 | 18 | 76 | — | 48 | 47 | — | — |
| 20 | 26.7 | 25 | 76 | — | 51 | 51 | — | — |
| 25 | 33.4 | 32 | 76 | 51 | 56 | 54 | 41 | 41 |
| 32 | 42.2 | 38 | 95 | 64 | 70 | 67 | 52 | 51 |
| 40 | 48.3 | 45 | 114 | 76 | 83 | 80 | 62 | 61 |
| 50 | 60.3 | 57 | 152 | 102 | 106 | 105 | 81 | 79 |
| 65 | 73.0 | 76 | 190 | 127 | 132 | 133 | 100 | 102 |
| 80 | 88.9 | 89 | 229 | 152 | 159 | 159 | 121 | 121 |
| 90 | 101.6 | — | 267 | 178 | 184 | — | 140 | — |
| 100 | 114.3 | 108 | 305 | 203 | 210 | 206 | 159 | 156 |
| 125 | 141.3 | 133 | 381 | 254 | 262 | 257 | 197 | 194 |
| 150 | 168.3 | 159 | 457 | 305 | 313 | 308 | 237 | 232 |
| 200 | 219.1 | 219 | 610 | 406 | 414 | 414 | 313 | 313 |
| 250 | 273.0 | 273 | 762 | 508 | 518 | 518 | 391 | 391 |
| 300 | 323.8 | 325 | 914 | 610 | 619 | 620 | 467 | 467 |
| 350 | 355.6 | 377 | 1 067 | 711 | 711 | 722 | 533 | 544 |
| 400 | 406.4 | 426 | 1 219 | 813 | 813 | 823 | 610 | 619 |
| 450 | 457 | 480 | 1 372 | 914 | 914 | 925 | 686 | 697 |
| 500 | 508 | 530 | 1 524 | 1 016 | 1 016 | 1 026 | 762 | 773 |
| 550 | 559 | — | 1 676 | 1 118 | 1 118 | — | 838 | — |
| 600 | 610 | 630 | 1 829 | 1 219 | 1 219 | 1 229 | 914 | 925 |
1:What are the outstanding performances of titanium pipe fittings in terms of corrosion resistance?
Titanium pipe fittings have extremely strong resistance to corrosive media such as seawater and chloride ions. Their
corrosion resistance far exceeds that of stainless steel and carbon steel, and they are especially suitable for harsh
environments such as Marine and chemical industries.
2: Do titanium 180° elbow need additional anti-rust measures?
No need. Titanium 180° elbow can be used for a long time without coating or cathodic protection, avoiding the risk
of rust and significantly reducing maintenance requirements.
3: Where does the lightweight advantage of titanium 180 degree elbow lie?
Titanium has a strength close to that of steel, but its density is only 60% of that of steel, which enables it to
significantly reduce the weight of equipment in fields such as aerospace and shipbuilding while maintaining high
load-bearing capacity.
4: How is the high-temperature resistance of titanium long radius return?
Titanium alloys (such as TA2 and TA9) can maintain stable mechanical properties at high temperatures of 300-500℃,
and some materials can even withstand higher temperatures for A short period of time.
5:Why are titanium pipe fittings still economical despite their high initial cost?
Although the initial purchase cost of titanium pipe fittings is relatively high, their extremely long service life and very
low maintenance requirements significantly reduce the long-term usage cost, making their overall economic performance
better.
6: Are titanium pipe fittings suitable for the pharmaceutical and food industries?
Yes. Titanium has non-toxic and harmless biocompatibility, and its material purity is high, fully meeting the strict hygiene
requirements of fields such as pharmaceuticals and food processing.
