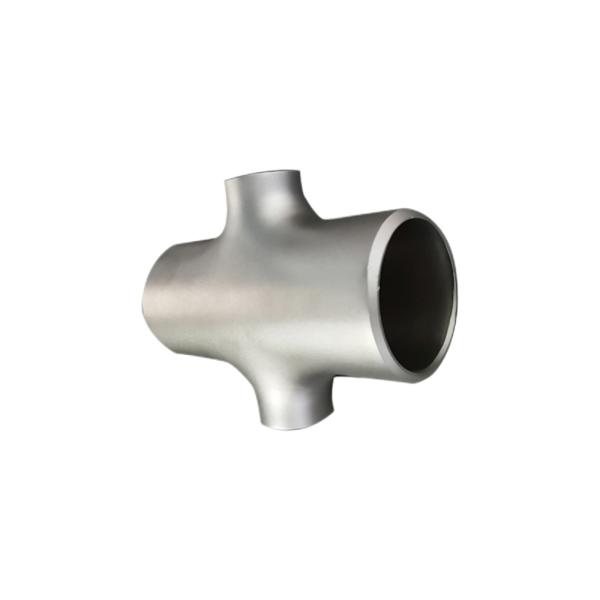

Titanium unequal cross is a pipe connection component used to connect the reducer parts of two or more pipes. It features
convenient connection and simple installation, and is widely used in industrial pipeline systems.
Titanium buttweld reducing cross pipe fittings specifications cover DN15×15×10-DN125×125×80, and also support non-standard
customization accordingly to customer’s requirements or drawings. Our titanium equal cross pipe fittings are manufactured
critically to the exact standard, including ASME B16.9,GB/T27684-2011 international standards to meet different requirements
from the customers worldwide.
Unequal Reducing Cross made of titanium material has the advantages of high strength, corrosion resistance and lightweight.
It has excellent corrosion resistance in extreme environments such as acids, alkalis and seawater, and its service life is far
longer than that of traditional materials. The high-temperature resistance property broadens the applicability to extreme
working conditions, comprehensively reduces maintenance costs, and enhances system reliability.
| Standard | ASTM B16.9,GB/T27684-2011 |
| Material Designation | TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
| Size | DN15×15×10-DN125×125×80 |
| OEM & ODM | Available |
| Titanium Surface Finish | Shot blasting, Sand blasting |
| Technics | Welding, Seamless |
| Type | Titanium Reducing Cross |
| HS code | 8108909000 |
| Packaging | Export Standard Wooden case, or can be customized |
| Application | Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for off shore oil drilling, etc |
| Nominal diameter
DN | Outside diameter at bevel d | Center to end |
| Tube pass T | Exit M | Tube pass C | Exit M |
| I series | ⅡSeries | I series | ⅡSeries |
| 15X15X10 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15X15X8 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20X20X15 | 26.7 | 25 | 21.3 | 18 | 29 | 29 |
| 20X20X10 | 26.7 | 25 | 17.3 | 14 | 29 | 29 |
| 25X25X20 | 33.4 | 32 | 26.7 | 25 | 38 | 38 |
| 25X25X15 | 33.4 | 32 | 21.3 | 18 | 38 | 38 |
| 32X32X25 | 42.2 | 38 | 33.4 | 32 | 48 | 48 |
| 32X32X20 | 42.2 | 38 | 26.7 | 25 | 48 | 48 |
| 32X32X15 | 42.2 | 38 | 21.3 | 18 | 48 | 48 |
| 40X40X32 | 48.3 | 45 | 42.2 | 38 | 57 | 57 |
| 40X40X25 | 48.3 | 45 | 33.4 | 32 | 57 | 57 |
| 40X40X20 | 48. 3 | 45 | 26.7 | 25 | 57 | 57 |
| 40X40X15 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
| 50X50X40 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
| 50X50X32 | 60. 3 | 57 | 42.2 | 38 | 64 | 57 |
| 50X50X25 | 60.3 | 57 | 33.4 | 32 | 64 | 51 |
| 50X50X20 | 60.3 | 57 | 26.7 | 25 | 64 | 44 |
| 65X65X50 | 73.0 | 76 | 60.3 | 57 | 76 | 70 |
| 65X65X40 | 73.0 | 76 | 48.3 | 45 | 76 | 67 |
| 65X65X32 | 73.0 | 76 | 42.2 | 38 | 76 | 64 |
| 65X65 X25 | 73.0 | 76 | 33.4 | 32 | 76 | 57 |
| 80X80X65 | 88.9 | 89 | 73.0 | 76 | 86 | 83 |
| 80X80X50 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
| 80X80X40 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
| 80X80X32 | 88.9 | 89 | 42.2 | 38 | 86 | 70 |
| 90X90X80 | 101.6 | ———— | 88.9 | ———— | 95 | 92 |
| 90X90X65 | 101.6 | ———— | 73.0 | ———— | 95 | 89 |
| 90X90X50 | 101.6 | ———— | 60.3 | ———— | 95 | 83 |
| 90X90X40 | 101.6 | ———— | 48.3 | ———— | 95 | 79 |
| 100X100X90 | 114.3 | ———— | 101.6 | ———— | 105 | 102 |
| 100X100X80 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
| 100X100X65 | 114.3 | 108 | 73.0 | 76 | 105 | 95 |
| 100X100X50 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
| 100X100X40 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
| 125X125X100 | 141.3 | 133 | 114.3 | 108 | 124 | 117 |
| 125X125X90 | 141.3 | ———— | 101.6 | ———— | 124 | 114 |
| 125X125X80 | 141.3 | 133 | 88.9 | 89 | 124 | 111 |
1: What are the outstanding performances of titanium reducing cross in terms of corrosion resistance?
Titanium reducing cross have extremely strong resistance to corrosive media such as seawater and chloride ions. Their
corrosion resistance far exceeds that of stainless steel and carbon steel, and they are especially suitable for harsh
environments such as Marine and chemical industries.
2: Do titanium unequal cross need additional anti-rust measures?
No need. Titanium unequal cross can be used for a long time without coating or cathodic protection, avoiding the risk of
rust and significantly reducing maintenance requirements.
3: Where does the lightweight advantage of titanium pipe reducing cross lie?
Titanium has a strength close to that of steel, but its density is only 60% of that of steel, which enables it to significantly
reduce the weight of equipment in fields such as aerospace and shipbuilding while maintaining high load-bearing capacity.
4: How is the high-temperature resistance of titanium pipe reducing cross?
Titanium alloys (such as TA2 and TA9) can maintain stable mechanical properties at high temperatures of 300-500℃, and
some materials can even withstand higher temperatures for A short period of time.
5: Why are titanium pipe fittings still economical despite their high initial cost?
Although the initial purchase cost of titanium pipe fittings is relatively high, their extremely long service life and very low
maintenance requirements significantly reduce the long-term usage cost, making their overall economic performance better.
6: Are titanium reducing cross suitable for the pharmaceutical and food industries?
Yes. Titanium has non-toxic and harmless biocompatibility, and its material purity is high, fully meeting the strict hygiene
requirements of fields such as pharmaceuticals and food processing.
